Tutorial: How to use components plus

Goal:

Saving parts of a schematic you often use to components plus.

Steps:

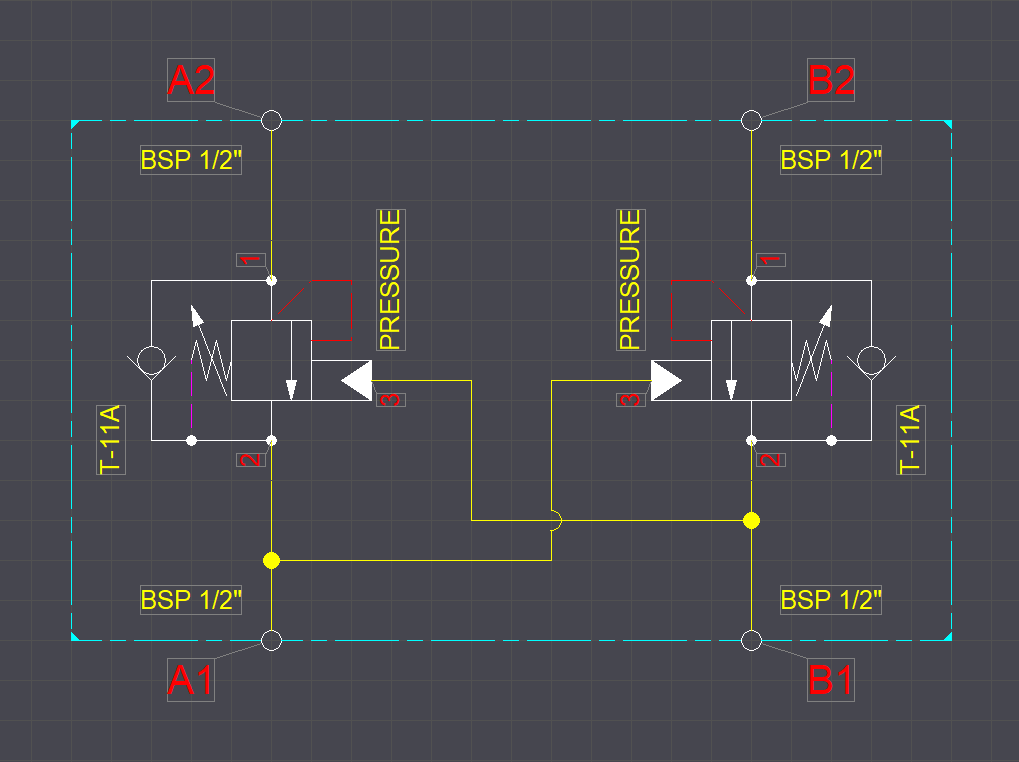

  • Start a new schematic. Draw your parts you want to save to components plus.

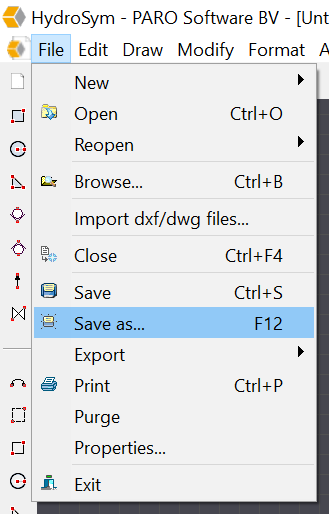

  • Select File -> Save as …

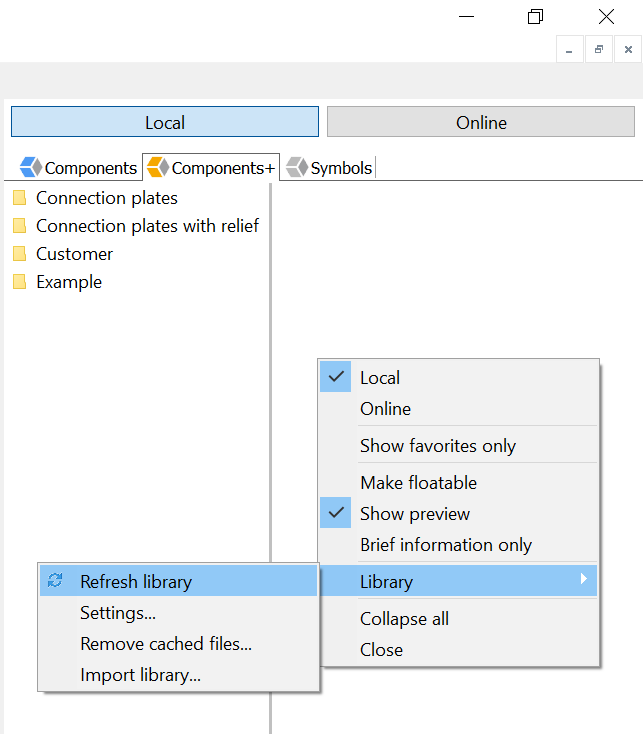

  • Browse to …\Libraries\Components Plus (or where your library is saved) and save the file here. If you want you also can create subfolders.Select the Components + tab in the library and refresh the library. Use your right mouse button to refresh the library.

  • You will find the file you created and saved here .

To use it in another schematic just drag from the components plus into your schematic.
